Cell Furing System
The term ‘metal furring system’, or MF system, refers to a non-structural metal attachment that is used to hold a
finish material, often used as a technique for creating a seamless plaster internal finish with a void behind for
the installation of services, with plasterboard fixed directly to the concealed metal furrings. It can be used as an
alternative to traditional timber batten construction for walls and ceilings.
Furring Channel
| Reference |
Diamensions
(mm )
A B C |
Thickness
(mm) |
Length
(mm) |
Material |
| CFC |
35 22 68 |
0.3 to 1 |
3000 |
Galvanized |
Main Channel
| Reference |
Diamensions
(mm )
A B C |
Thickness
(mm) |
Length
(mm) |
Material |
| CFC |
35 22 68 |
0.3 to 1 |
3000 |
Galvanized |
Wall Channel
| Reference |
Diamensions
(mm )
A B C |
Thickness
(mm) |
Length
(mm) |
Material |
| CFC |
35 22 68 |
0.3 to 1 |
3000 |
Galvanized |

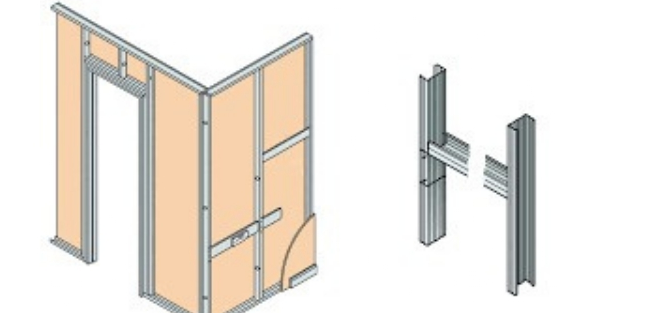

Dry Wall Partition System
The drywall partitioning system from Dana is a system of metal partition composed of ceiling, studs, and tracks. The partitions of Dana Stud & Track are light, unloaded and responsive on site. The measures are cost-effective for any form of commercial, leisure,
industrial, and residential development.
Stud
| Reference |
Diamensions
(mm )
A B C |
Thickness
(mm) |
Length
(mm) |
Material |
| ST50 |
50 36 34 |
0.3 to 1 |
3000 |
Galvanized |
| ST50 |
73 36 34 |
0.3 to 1 |
3000 |
Galvanized |
| ST50 |
98 36 34 |
0.3 to 1 |
3000 |
Galvanized |
Track
| Reference |
Diamensions
(mm )
A B C |
Thickness
(mm) |
Length
(mm) |
Material |
| TR 52 |
52 25 23 |
0.3 to 1 |
3000 |
Galvanized |
| TR 72 |
75 25 23 |
0.3 to 1 |
3000 |
Galvanized |
| TR 100 |
100 25 23 |
0.3 to 1 |
3000 |
Galvanized |
